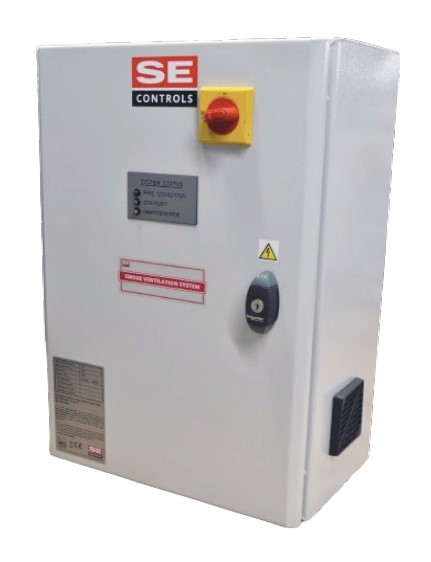

OS2 SHEVTEC Multi Zone Panel

Product Details

The OS2 SHEVTEC Multi Zone Panel is a powerful 24 V dc control system designed to drive 2-wire 24 V dc actuators in a smoke control and/or environmental ventilation system.

This range of panels provide a flexible solution offering various configurations of output power and control zone inputs.

Operating from a 230 V ac supply, the OS2 SHEVTEC Multi Zone Panel can deliver various current outputs to drive 24 Volt motorised actuators and
magnetic catches.

OS2 SHEVTEC Multi Zone Panel can be mounted in a centralised location. Each OS2 SHEVTEC Multi Zone Panel can operate independently or can be linked to others to produce a networked control system. The networked control system in turn can operate standalone or be linked to a building management system.

The connections1 that are standard for each zone are listed below:

• Fire Alarm/Smoke Detector Interface
• Fireman’s Override Switch
• Day-to-Day Open Close

1 For further connection requirements, please contact SE Controls for a bespoke quotation on panels.
